Insert bearings are based on sealed deep groove ball bearings. This variant is suitable for applications with both constant and alternating directions of rotation.

It has an inner ring extended on both sides and is locked onto the shaft by tightening two (set) screws on the inner ring, making it easy to mount.

Designed for a constant and alternating rotation
Quick and easy to mount onto the shaft
Accommodate static initial misalignment
Long service life
Reduce noise and vibration levels

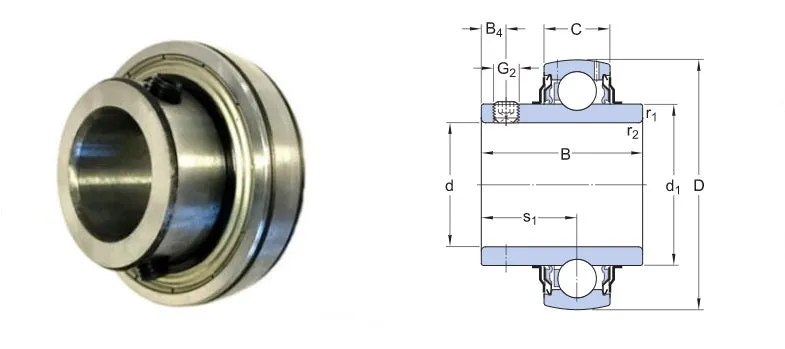

Dimensions

Bore diameter 55 mm
Outside diameter 100 mm
Width, inner ring 55.6 mm
Width, outer ring 25 mm
Width, total 55.6 mm

Performance
Basic dynamic load rating 43.6 kN
Basic static load rating 29 kN
Limiting speed 3 600 r/min
Note Limiting speed with shaft tolerance h6
Properties
Bore type Cylindrical
Cage Non-metallic
Coating Without
Inner ring extension On both sides
Lubricant Grease
Material, bearing Bearing steel
Outer ring type Spherical
Relubrication feature With
Retaining feature, inner ring Set screws
Rolling elements Balls
Rubber seating ring Without
SealingSeal and flinger on both sides
Sealing type Contact, standard
