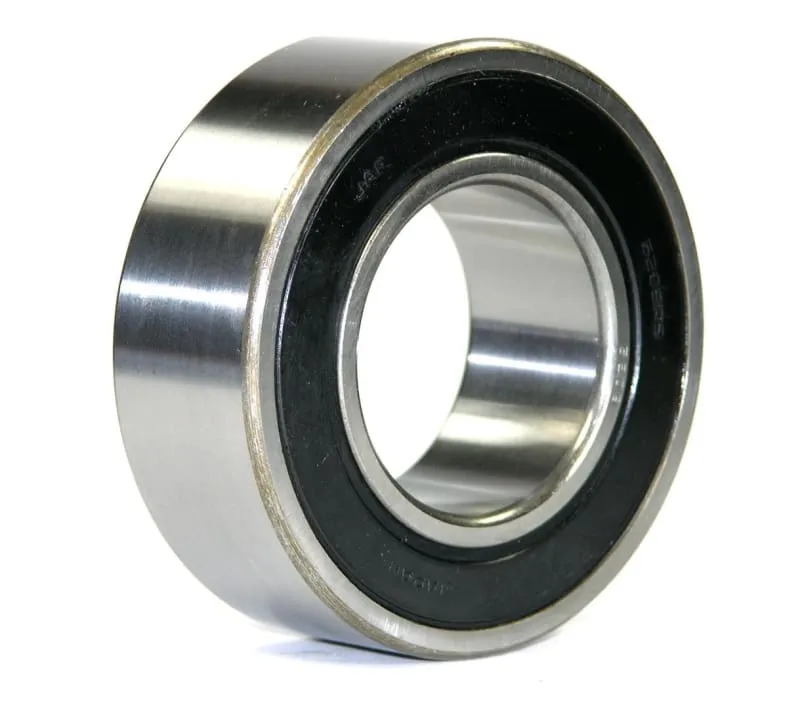

5208-2RS, 2-Row Angular Contact Ball Bearing Double-row angular contact ball bearing, supporting combined radial and bidirectional thrust loads Ball contact angle of 20 degrees relative to the inner and outer raceways increases thrust load capacity Rubber seals on both sides of the bearing to keep lubricant in and contaminants out Pressed steel cage evenly spaces balls for reduced friction, vibration, and noise Normal axial internal clearance for applications where high thermal expansion is not a factor
- Item: Angular Contact Ball Bearing
- Type: Double Row
- Bore Dia.: 40mm
- Outside Dia.: 80mm
- Width: 30.2mm
- Max. RPM: 6,600
- Dynamic Load Capacity: (Lb.)9600
- Dynamic Load Capacity: (N)42702.927552
- Static Load Capacity: (Lb.)7200
- ABEC Tolerance: 1
- Temp. Range: (F) -40 Degrees to 350 Degrees
- Cage Material: High-Speed Polyamide
- Seal Material: Nitrile Rubber
- Lubrication: Polyrex EM Grease
- Made in Japan
